Parameter

Symbol

Condition

Min

Typ

Max

Unit

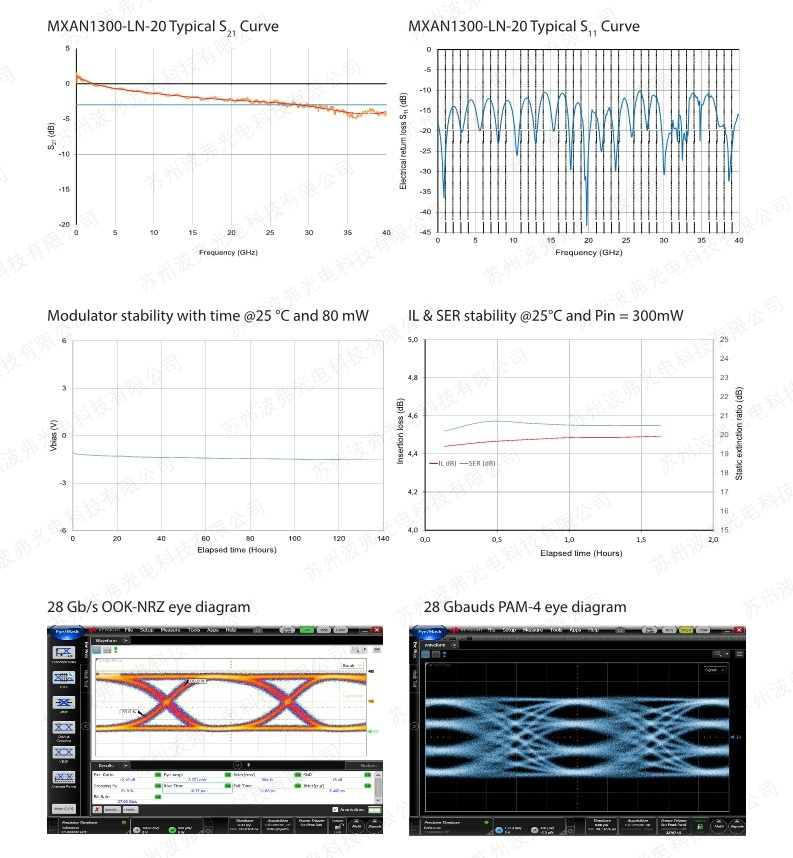

Electro-optic bandwidth

S₂₁

RF electrodes, from 2 GHz

20

25

-

GHz

Ripple S₂₁

DS₂₁

RF electrodes, f < 20 GHz

-

0.5

1

dB

Electrical return loss

S₁₁

RF electrodes, f < 20 GHz

-

-13

-9

dB

Vπ RF @50 kHz

VπRF_{50 kHz}

RF electrodes

-

5.5

6

V

VπDC electrodes

VπDC

DC electrodes

-

4

4.5

V

2^nd harmonic suppression ratio

H₁ - H₂

Measured @5 GHz, RF_IN = 0 dBm

-

60

-

dB

Input 3rd order intercept

IIP3

Measured @5 GHz

28

30

-

dBm

RF input impedance

Z_in-RF

-

-

50

-

Ω

DC input impedance

Z_in-DC

-

1

-

-

MΩ

Parameter

Symbol

Condition

Min

Typ

Max

Unit

Crystal

-

-

Lithium Niobate X-Cut Y-Prop

Operating wavelength

λ

-

1260

1310

1350

nm

Insertion loss

IL

Without connectors

-

4

5.5

dB

DC extinction ratio

ER

線寬 < 200 MHz

20

25

-

dB

Optical return loss

ORL

-

-40

-45

-

dB

Chirp

a

-

-0.1

0

0.1

-

Parameter

Symbol

Min

Max

Unit

RF input power

EP_in

-

28

dBm

Bias voltage

V_bias

-20

20

V

Optical input power

OP_in

-

25

dBm

Operating temperature

OT

0

70

°C

Storage temperature

ST

-40

85

°C
