壓電陶瓷芯片 | PCh 150 / HPCh 150
PCh 150 / HPCh 150壓電陶瓷芯片多層壓電陶瓷組成最大推力可高達10000N，這些驅動器可以精密移動，產生的自由行程范圍(無負載條件下)從2 μm至4 μm 。驅動器預載最大位移負載時，可以達到最大位移，每種型號對于這點都有相應規定。每種型號最大位移的實際值有所差異，必須通過實驗確定，最大位移始終會大于自由行程位移。
平面多層元件
?用于超緊湊的執行器布置
?用于高軸向共振頻率
?適用于d31和d33動作
?用于力傳感/發生器應用
?特殊的50 V型，具有非常高的電荷產生率
|
Actor type isi-Stacks |
Ceramic crosssection |
thickness L1) |
Max. Stroke2) |
Capacitance |
Resonance- frequency |
Stiffness |
Blockingforce3) |
Max. Load force |
|
a x b/mm2 |
mm |
μm |
nF |
kHz |
N/μm |
N |
N |
|
|
PCh 50/5x5/2 |
5x5 |
2 |
>3/>2 |
1250 |
> 500 kHz |
500 |
1500 |
2000 |
|
PCh 150/3x3/2 |
3x3 |
2 |
>3/>2 |
30 |
>500 kHz |
190 |
500 |
500 |
|
PCh 150/5x5/2 |
5x5 |
2 |
>3/>2 |
110 |
>500 kHz |
500 |
1500 |
2000 |
|
PCh 150/7x7/2 |
7x7 |
2 |
>3/>2 |
240 |
>500 kHz |
1000 |
3000 |
5000 |
|
PCh 150/10x10/2 |
10x10 |
2 |
>3/>2 |
480 |
>500 kHz |
1900 |
6000 |
10000 |
|
HPCh 150/6-2/2 |
6x2 |
2 |
>3/>2 |
110 |
>500 kHz |
400 |
1500 |
2000 |
|
HPCh 150/8-3/2 |
8x3 |
2 |
>3/>2 |
200 |
>500 kHz |
900 |
2500 |
4000 |
|
HPCh 150/10-5/3 |
10x5 |
3 |
>4/>3 |
375 |
>300 kHz |
900 |
3000 |
4500 |
|
HPCh 150/12-6/2 |
12x6 |
2 |
>3/>2 |
500 |
>500 kHz |
1400 |
5000 |
5000 |
|
HPCh 150/15-8/3 |
15x8 |
3 |
>4/>3 |
790 |
>300 kHz |
1800 |
7000 |
10000 |
|
更多詳細信息、需求信息，聯系蘇州leyu集團光電科技有限公司相關銷售人員。 |
||||||||
1) direction of expansion
2) semi-bipolar/unipolar activation
3) blocking force = max. force generation defined for max. semi-bipolar operation

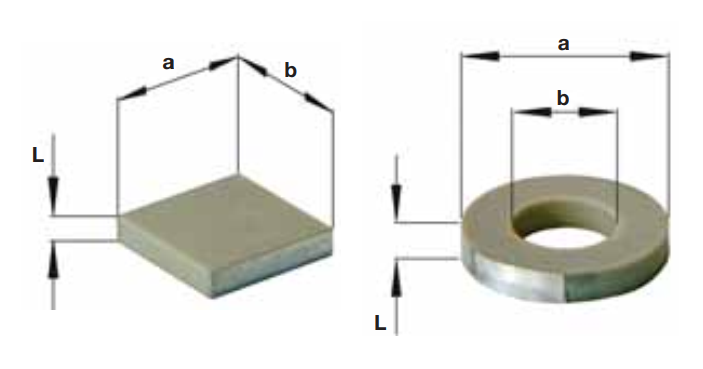

Dimensions
a, b, L
tolerances:
a, b +/- 0.3 mm
L +/- 0.1 mm
Fig. : Piezo-chips PCh, PHCh
Mounting advises: Piezo-chips show very small stroke rates due to their short active length L.
Incorrect mounting will impact force and stroke generation, leading to insufficient performance and unwanted bending and tilting. Please follow instructions in chapter 2.3.
Maximum voltage ranges
PCh 50: (-)10 V/ (+)50 V
PCh 150: (-)30 V/ (+)150 V
Temperature range
-273 °C thru approx. +130 °C
Surface insulation
buried electrode, no coating
